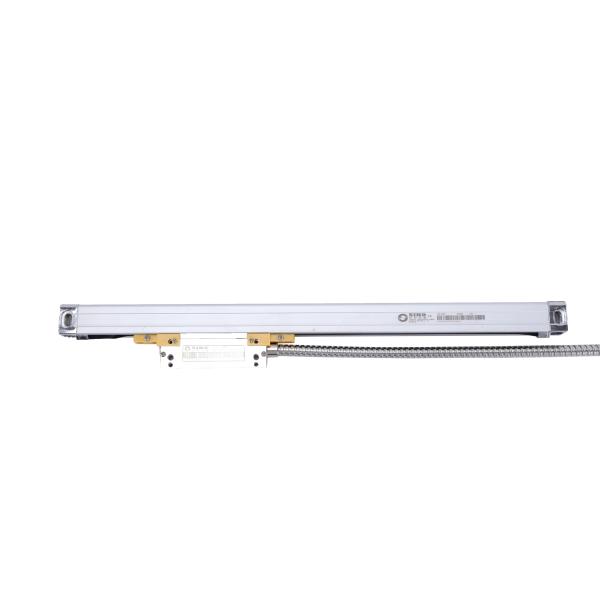

Ka500 0.5/1/5um Digital Readout Measure Length 50-1100mm Linear Position Optical Scale

The SINO KA500 Optical Encoder Glass Linear Scale is designed for use with digital readout (DRO) systems and is a CNC linear encoder scale. It provides accurate and reliable measurement feedback for CNC machines, ensuring control and precision during machining operations. Its optical encoder technology ensures high resolution and durability, making it suitable for demanding industrial applications.

Features:

Premium Glass Construction: Crafted from high-quality glass, this linear scale ensures stability and durability, even in the most challenging machining environments. Its resistance to corrosion and mechanical wear contributes to its long-lasting performance.

CNC Compatibility: The KA500 linear scale is compatible with a wide range of CNC machines, enabling its use in diverse machining and manufacturing applications. Its seamless integration with CNC machine control systems ensures accurate positioning and motion control.

Easy Installation: Simplifying the installation process, the linear scale is equipped with mounting brackets and other accessories, facilitating quick and hassle-free setup. This streamlines the connection with existing CNC systems, promoting efficient implementation.

Versatile Length Options: Available in various lengths and travel distances, the KA500 linear scale offers versatility to accommodate different machine sizes. This flexibility allows users to select the most suitable scale length based on their specific machine requirements.

Functionality:

The SINO KA500 Optical Encoder Glass Linear Scale provides accurate and real-time position feedback for CNC machines. This enables operators to precisely manage machine movements, ensuring precise machining results and adherence to tight tolerances. With its high-resolution measuring capability, the linear scale ensures exceptional precision, enhancing the overall performance of CNC systems.

Application:

The KA500 linear scale is extensively used in CNC machining applications within the manufacturing, woodworking, and metalworking industries. It is well-suited for tasks such as milling, turning, grinding, and various CNC processes that require precise and consistent position feedback.

The KA-500 is a compact encoder specifically designed for machine tools with restricted installation and workspaces, meeting the specific positioning requirements of customers. Its dimensions are 70 mm by 470 mm.

Package includes:

Glass linear scale, 1 piece, KA500-470mm

0.5/1/5 m of resolution is available.

Customized encoder lengths (L0) can be provided based on the needs of the consumers.(Length:70-470mm)

L0: Effective measuring length of encoder L1: Dimension of encoder mounting hole

L2: Encoder overall dimension

Operating Guideline

The operator must carefully review the General Description, Safety Considerations, and all content in Chapter 1.
In addition to the General Description and Safety Considerations, technicians responsible for installation, testing, and repairs must diligently adhere to the content of Chapters 1 through 3, and fully understand all sections of Chapters 4–5.
These operating instructions exclusively apply to SINO's KA series of integrated circuits for the linear encoder.
Please take a moment to review the safety considerations provided below, as it contains crucial information for the safe use of your linear encoder.

Detail Information:

All linear scales will be tested before delivery. Here is a sample of a scale's testing report.

Our company, Guangzhou SINO International Trade Co., Ltd is located in Guangzhou city, Guangdong province, China. Guangzhou SINO International Trade Co. LTD is the subsidiary of the SINO group. SINO specializes in the development and manufacture of high-precision measuring products since 2002. It has a series of the world’s most advanced equipment and has been certificated by IS09001, CE, RoHS, and the electrical safety standards for European authentication. The competitive products linear grating ruler and digital readout are famous in the world. With untiring efforts in development in this area since 1989, the best seller in China for the last ten years.

SINO is the leading linear encoder & DRO manufacturer in China. Our main products included linear scales encoder, magnetic encoder, angle encoder, and DRO displays suitable for milling, lathe, EDM, grinding machine, boring machine and we keep developing and improving to move forward with very good quality. The company has cooperated with many clients from overseas and has obtained consistently high praise from our customers since it was set up. The company tries its best to do well at any aspect from each stitch, each point of procedure of manufacturing to final inspection, packing, and shipment. We insist on the principle of development of 'All we do are clients need' to provide you with excellent service of processing! We sincerely welcome you to visit our company or contact us for cooperation.
